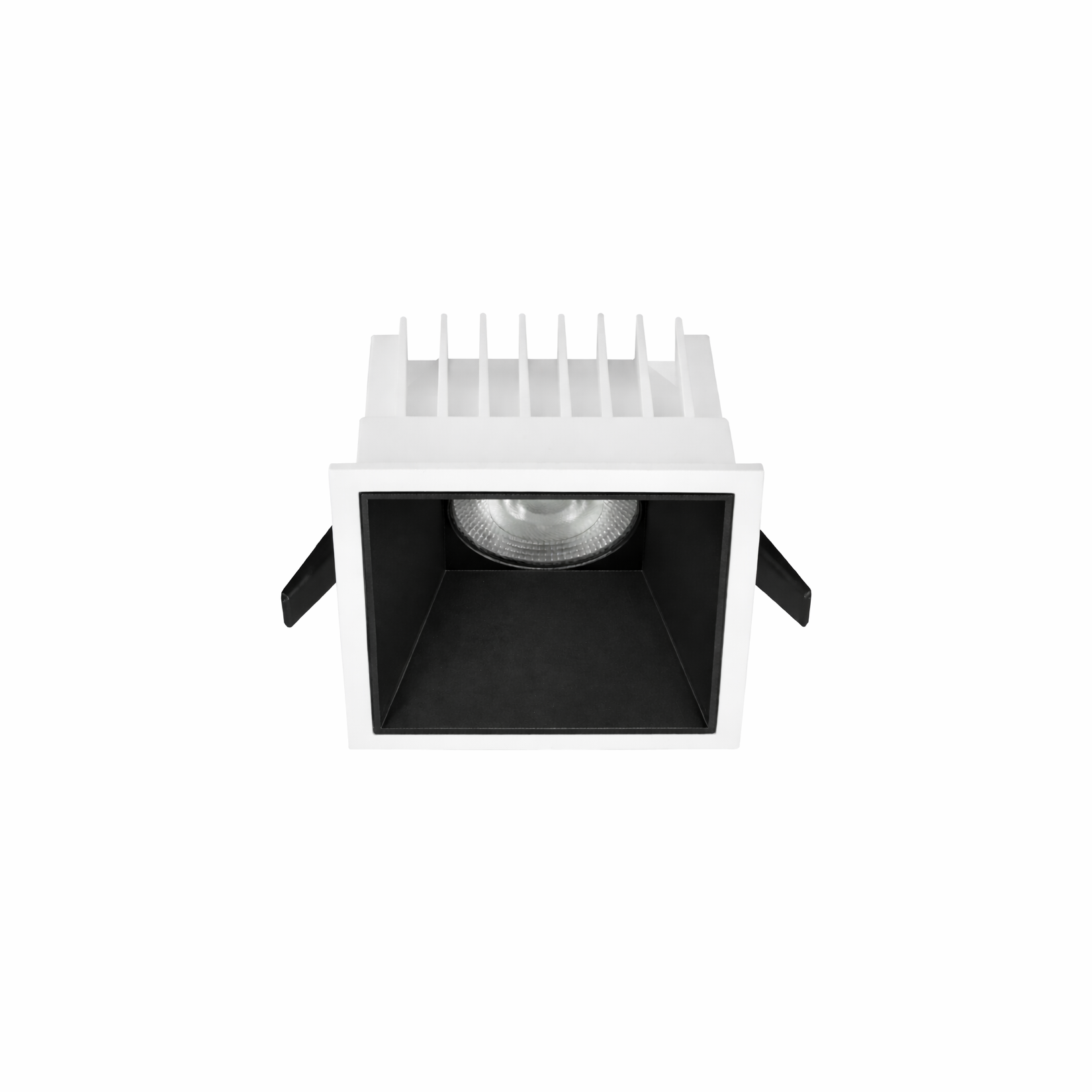

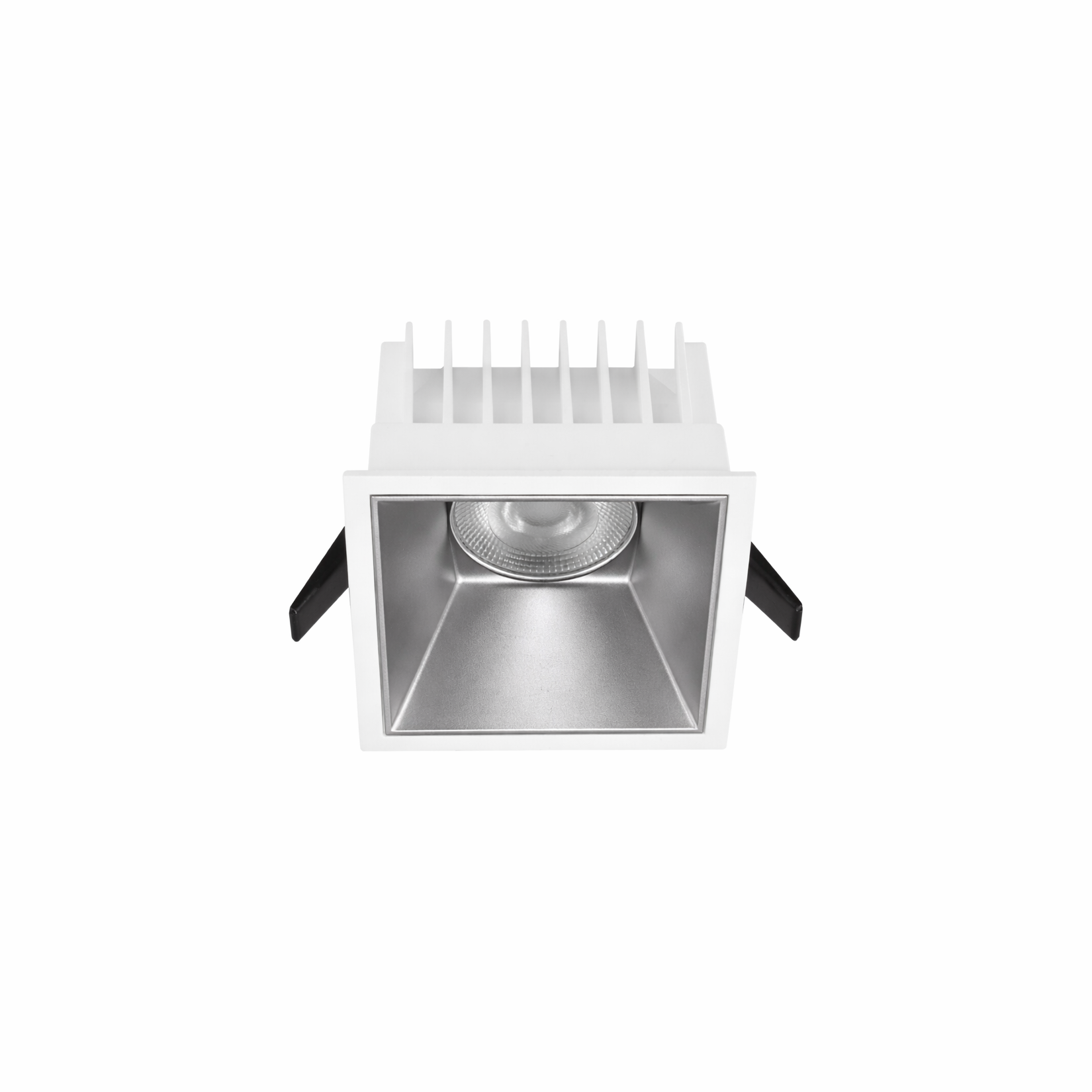

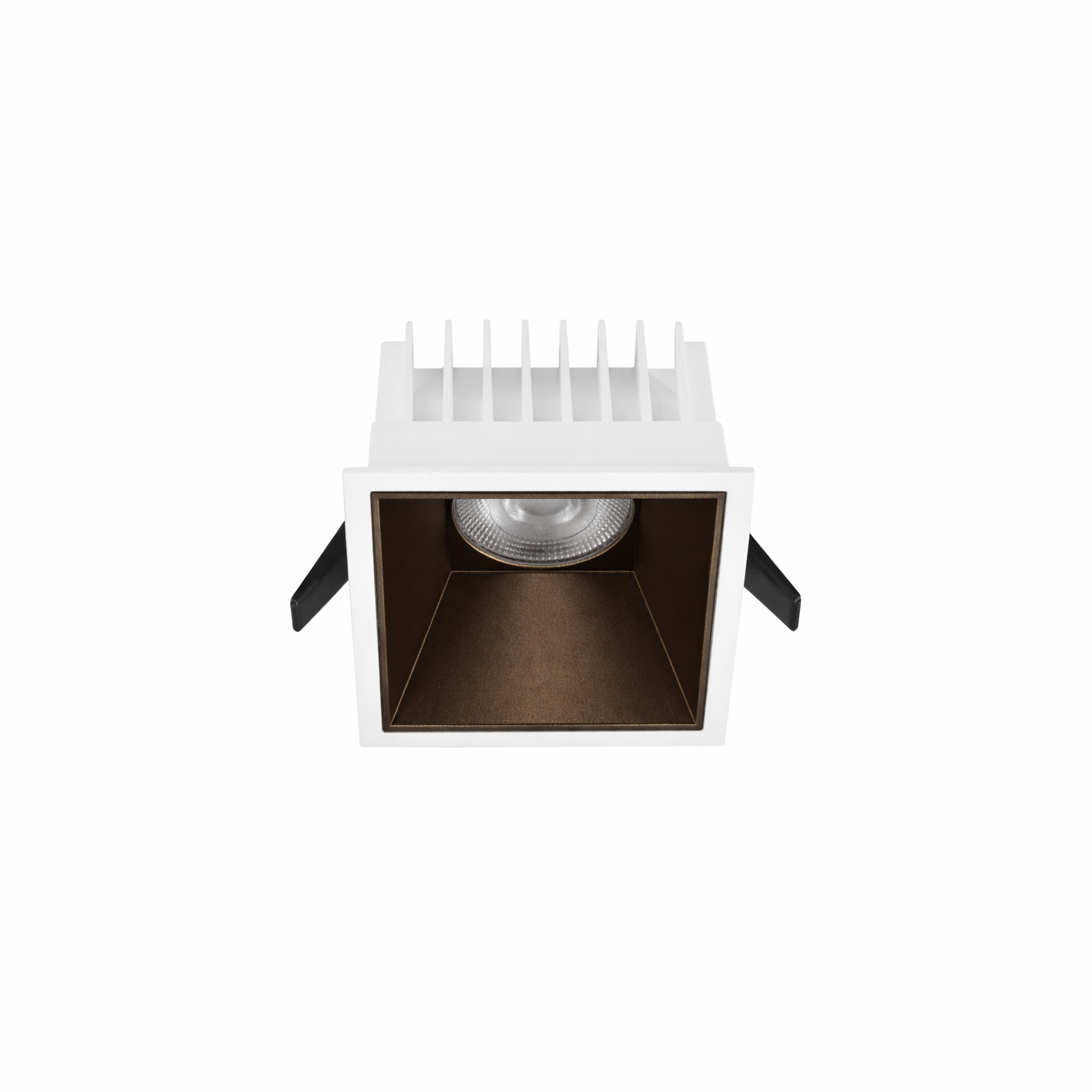

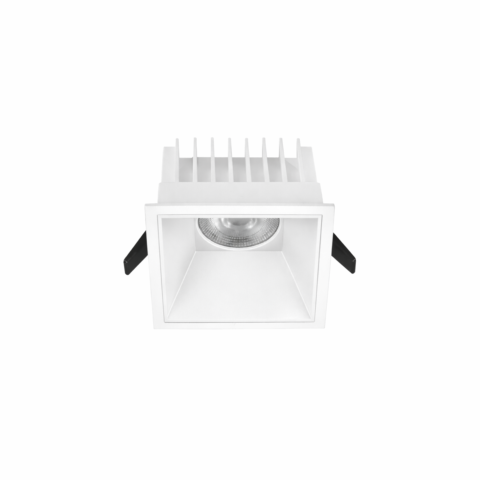

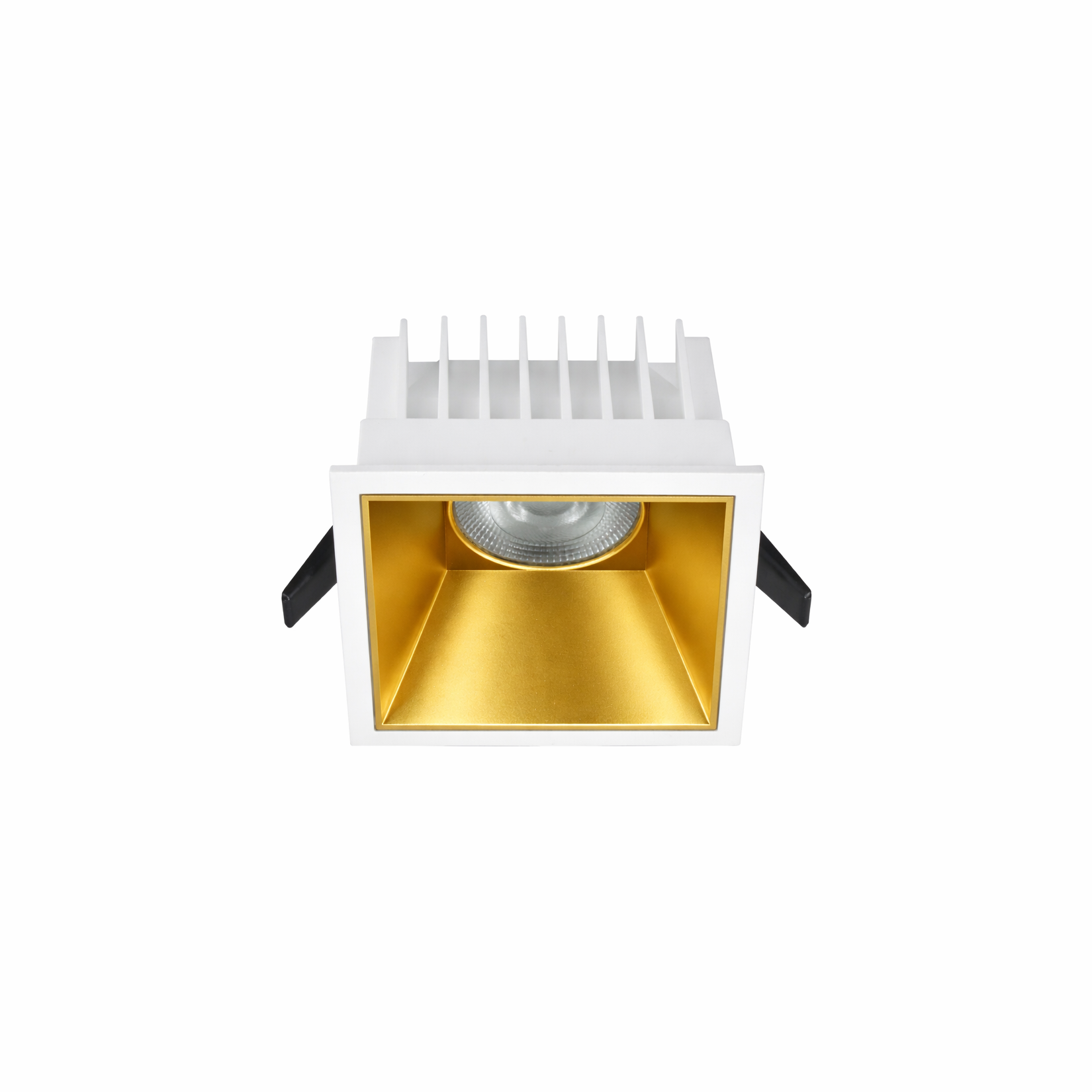

The Arc Lux is available in five body sizes and in both circular and square options. The internal reflector and housing can be supplied in a range of colour finishes, allowing for flexibility in both performance and aesthetic integration. The ultra-clear PMMA optic is fully sealed to IP65, making these downlights an ideal choice for a wide variety of applications without compromising the visual effect of the space.

The luminaire utilises high-performance, energy-efficient chip-on-board (COB) LED technology, paired with high-quality European-branded remote drivers, ensuring high efficacy and stable output across applications.

The body incorporates a thermally optimised die-cast aluminium heatsink and is supplied complete with an IP67-rated stainless steel gland and connection cable. UGR is between 10–12, depending on beam angle selection of 15°/24°/36°/60°, with a 3-step MacAdam ellipse ensuring tight colour consistency.

Available in 3000K and 4000K as standard (other CCTs available on request), with CRI 80 as standard and optional CRI 90. Rated LED lifetime is 60,000 hours (L80 B10).

15W : 2700K-7000K : 1,300 lumen - 1,500 lumen : CRI80/90/97

100mm long x 100mm wide x 64mm deep and requires a cut-out of 90mm L x W.
