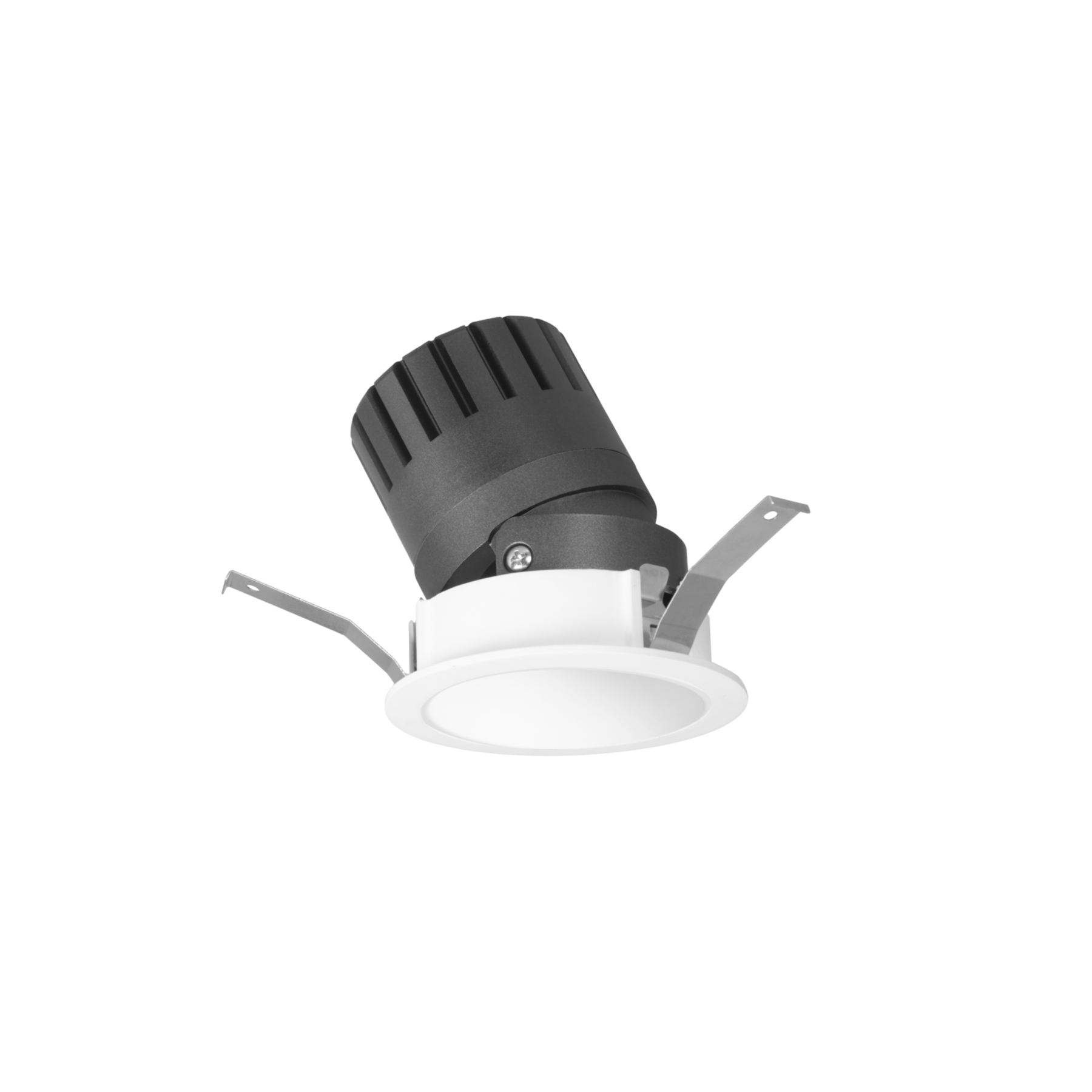

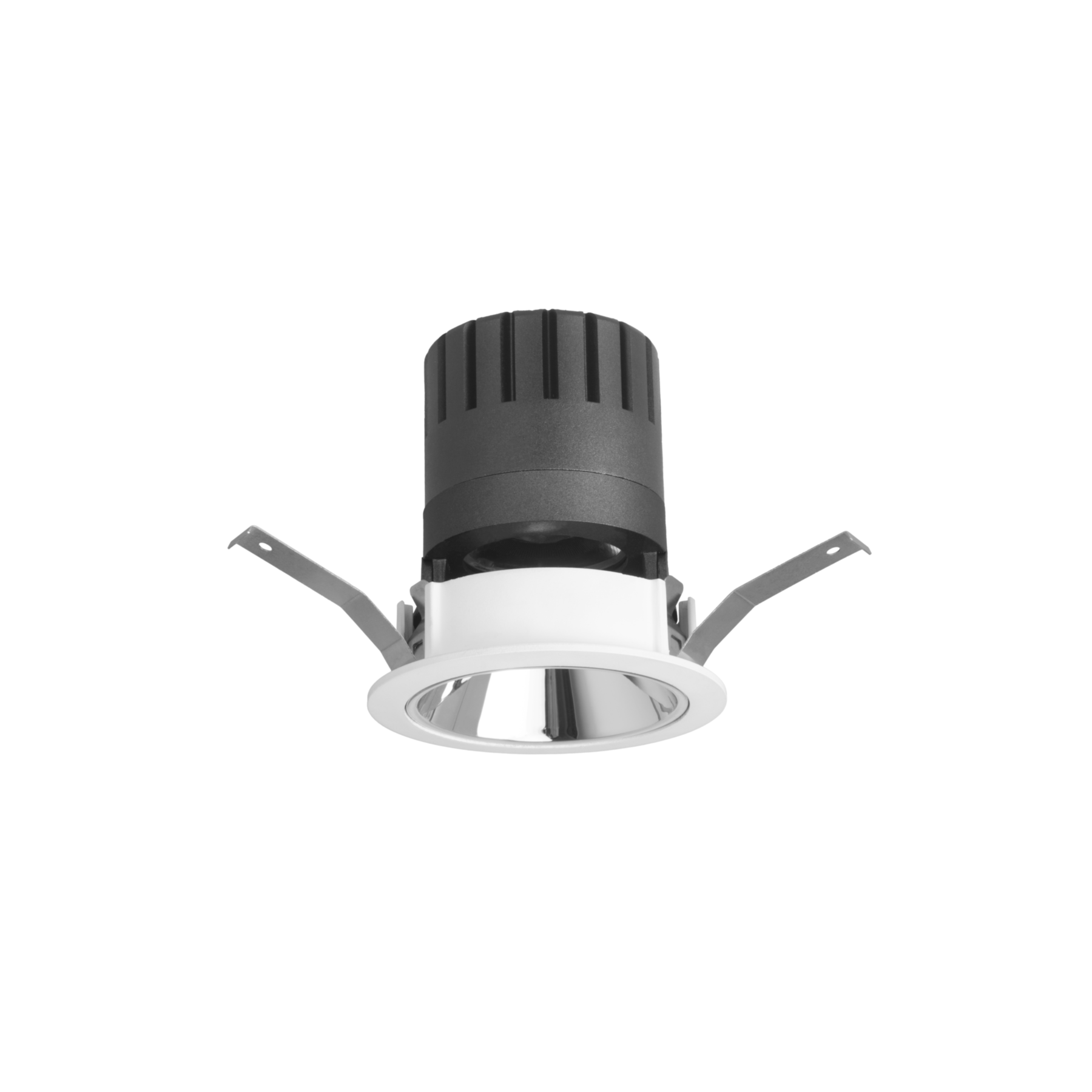

Available in three sizes and two shapes - circular or square - the Verto offers full 360° rotation and a 25° tilt for maximum adjustability. Available in a range of paint finishes, the internal reflector and housing are also offered in polished or matte pure aluminium to ensure consistent optical performance and visual uniformity.

High-performance chip-on-board (COB) LED technology delivers high efficacy and stable output in conjunction with the ultra-clear PMMA optic. Various high-quality European-branded remote drivers are available in either dimming or non-dimming options, making the fitting suitable for integration into a wide variety of applications without compromising the architectural intent.

The body incorporates a thermally optimised die-cast aluminium heatsink for efficient heat dissipation and is supplied complete with a two-core connection lead. UGR is between 8–11, dependent on beam angle selection of 15°/24°/36°, with a 3-step MacAdam ellipse ensuring tight colour consistency.

Available in 3000K and 4000K as standard (other CCTs available on request), with CRI 80 as standard and optional CRI 90 or CRI 97. Rated lifetime is 60,000 hours (L80 B10).



15W : 2700K-7000K : 900 lumen - 1300 lumen : CRI80/90/97 : 360° rotation & 25° tilt

86mm dia. x 105mm deep and requires a cut-out of 75mm dia.






Part Number Example CL01-0032/15W/4000K/36D/IP20/DD/WHT/WI/DE



PREFIX WATTAGE CCT BEAM ANGLE IP RATING DRIVER BODY COLOUR INSERT COLOUR* EMERGENCY

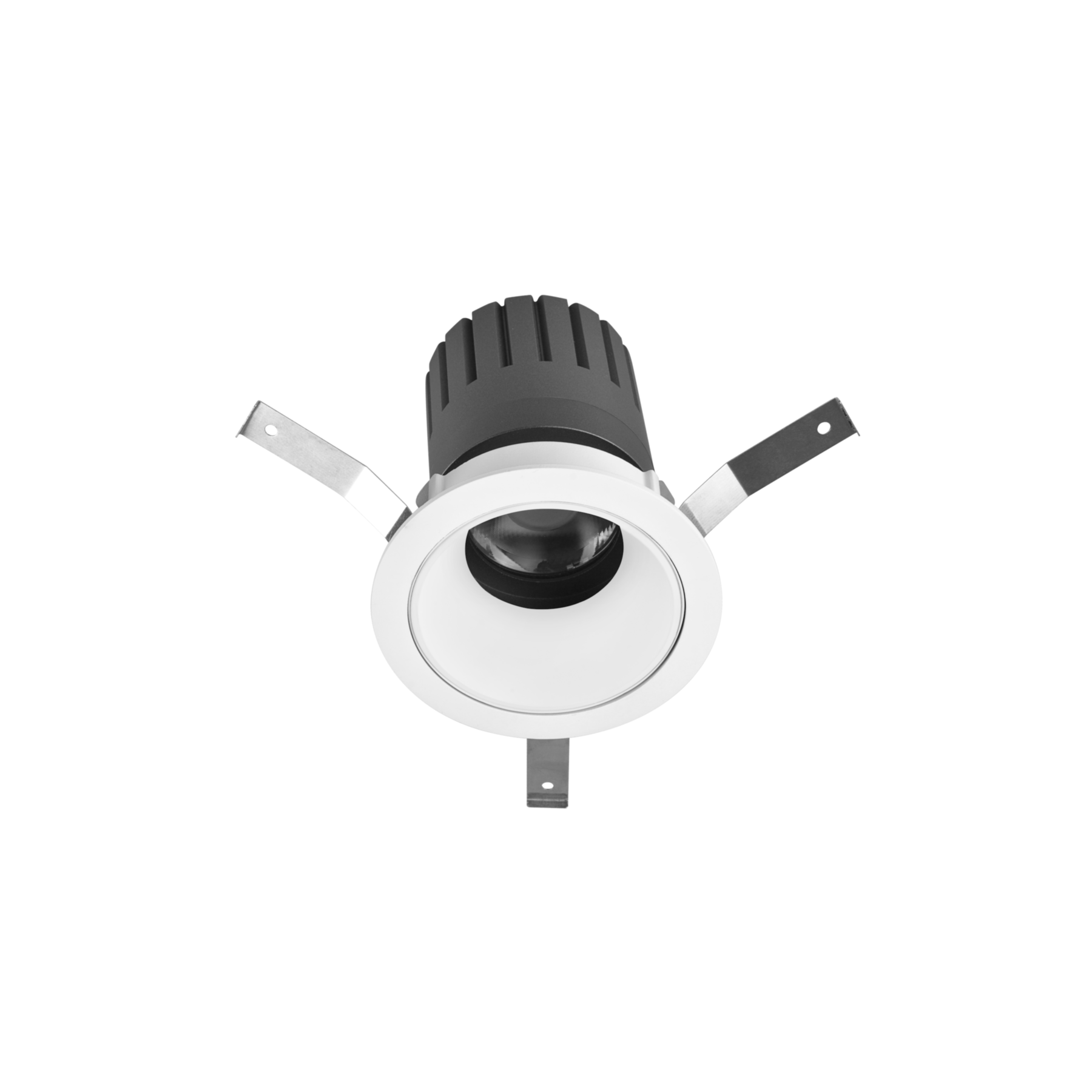

CL01-0032 15W 2700K 15° IP20 DALI DD White WHT (RAL9016) White WI (RAL9016)  STANDARD ST
    3000K 24°   ON/OFF ST BLACK BLK (RAL9005) Silver SI (RAL9006)  DALI REPORTING DE
    3500K 36°   CASAMBI CA    Black BI (RAL9005)
    4000K     TUNABLE TU   Bronze BZ (RAL8019)

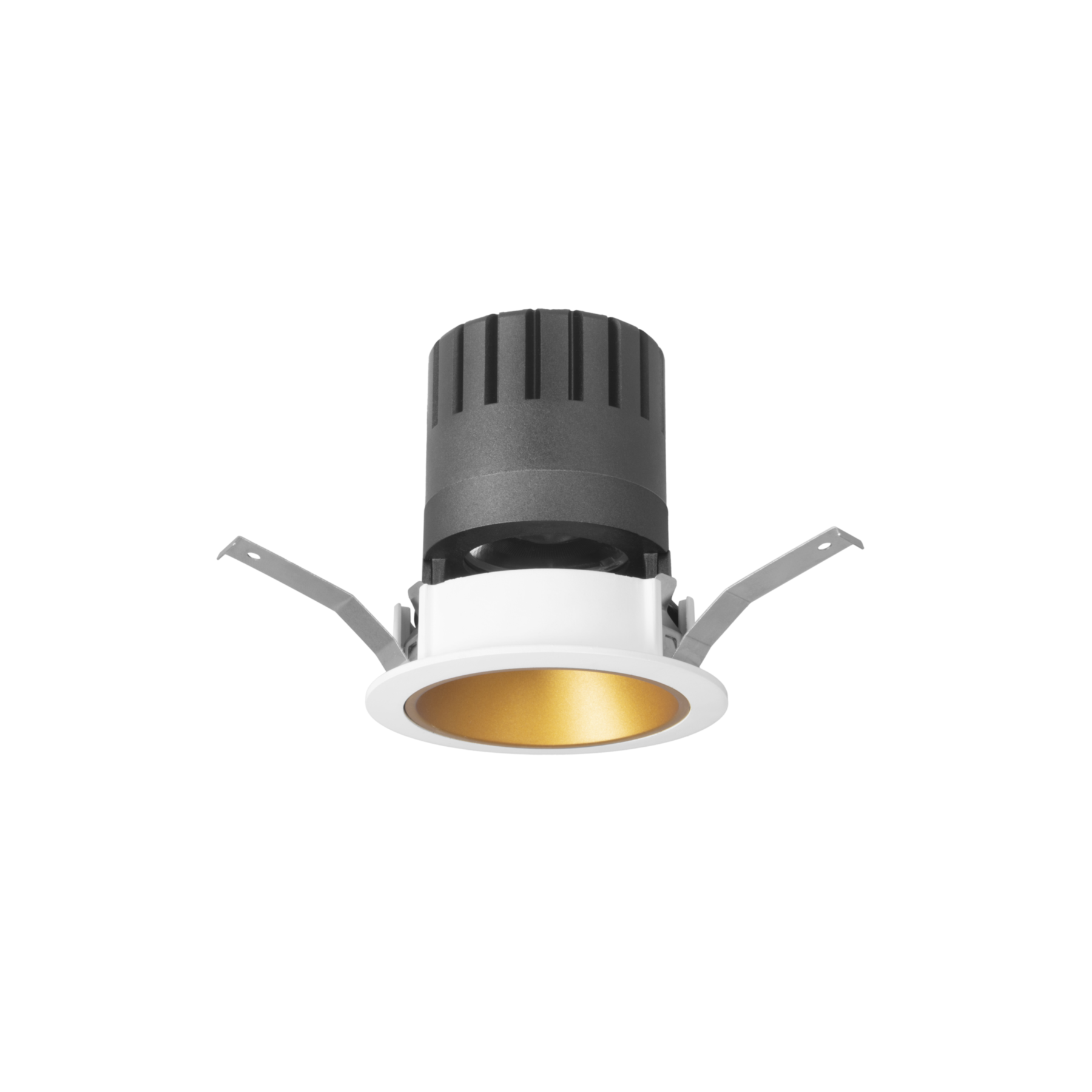

    5000K         Brass BR (Anodised)

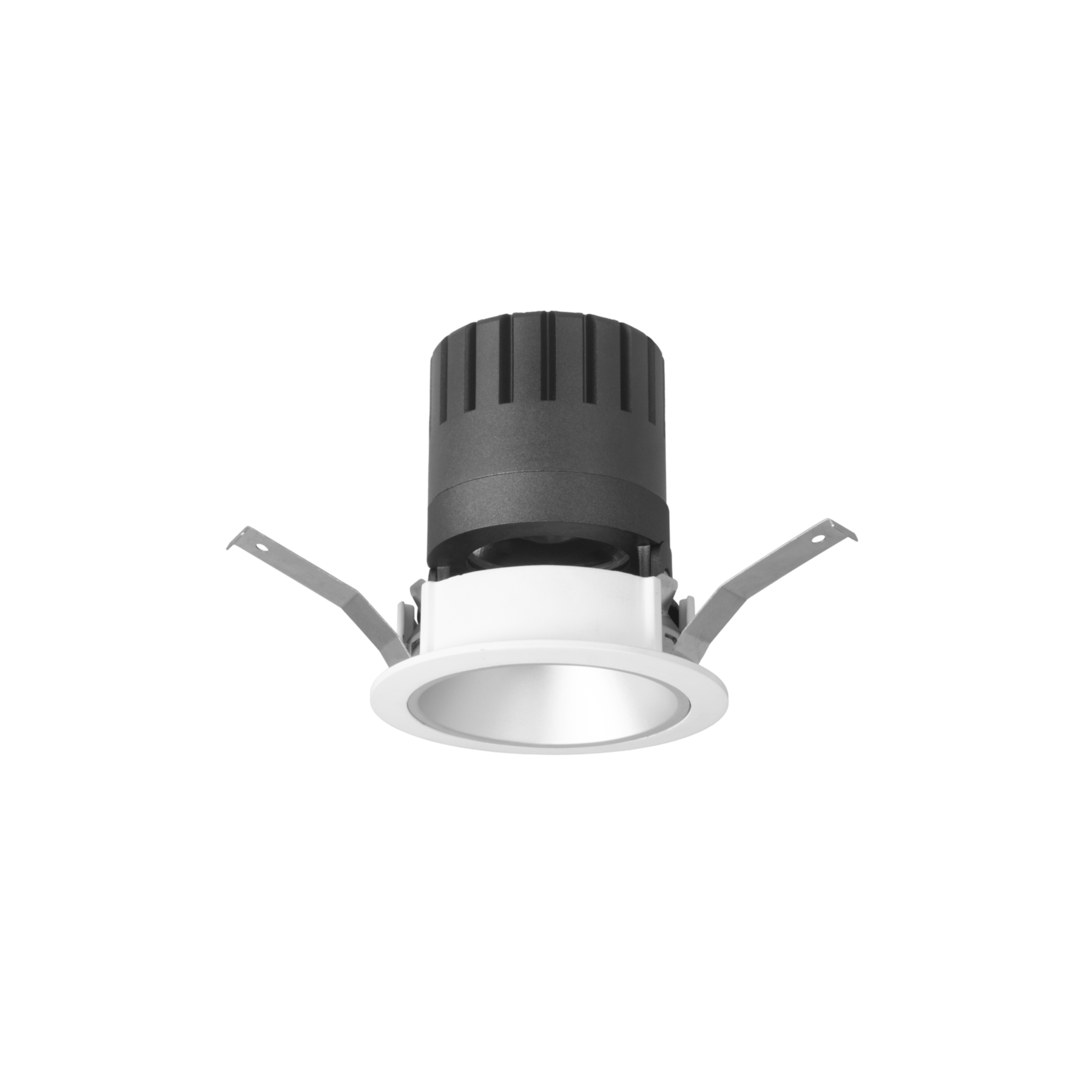

    6500K         Matt MA (Aluminium)
    7000K         Polished PA (Aluminium)

*Insert colours are for reference only. Colours may appear different to those shown in the product images.

Other options: ../C1 Fixed body, ../C2 Fixed body + Plaster-in, ..C3/ Adjustable body + Plaster-in



Verto 86C - Lumen outputs of beam angles for 3000K and 4000K at CRI80

PART CODE CCT BEAM ANGLE LUMENS
CL01-0032/15/3000K/15D/****/**/***/**/** 3000K 15° 1156
CL01-0032/15W/4000K/15D/****/**/***/**/** 4000K 15° 1271
CL01-0032/15W/3000K/24D/****/**/***/**/** 3000K 24° 1105
CL01-0032/15W/4000K/24D/****/**/***/**/** 4000K 24° 1216
CL01-0032/15W/3000K/36D/****/**/***/**/** 3000K 36° 941
CL01-0032/15W/4000K/36D/****/**/***/**/** 4000K 36° 1035



Distribution Direct
Colour Temp.  2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 7000K
Optic/Diffuser Clear PMMA
Output Varies due to beam angle, CRI and insert colour
Finish Standard RAL colours. Other colours to special order
Efficacy Up to 90 lm/W
CRI 80 (standard), 90 and 97
MacAdam Ellipse <3SDCM
Controls Fixed output, Dali, Casambi and Tunable
Installation Recessed
Dimensions Ø86mm x 105mm deep
Connection Male/Female connection cable
Material Cast Aluminium alloy
Ingress Protection IP20
Impact Rating IK06
Operating Voltage 220-240V 50/60Hz
Emergency Options Standard or Dali reporting
Lifetime 60,000 hours / L80 B10
Warranty 5 years
UGR Varies between 8 - 11
