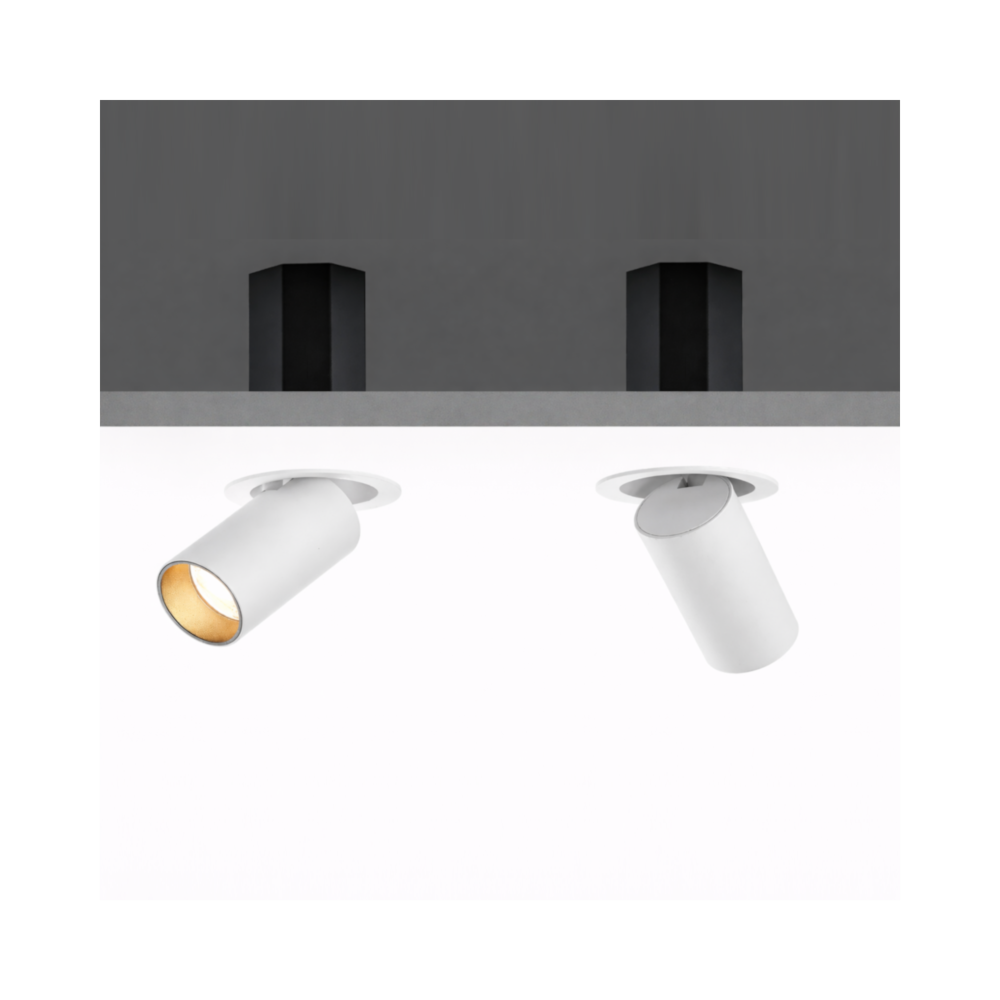

Available in three diameter sizes, the Micro Glide range offers 355° rotation and a 90° tilt for maximum adjustability. White or black body paint finishes are supplied as standard, with alternative RAL colours available subject to order quantity.

The internal white insert provides comfort-glare visual uniformity, while high-performance chip-on-board (COB) LED technology delivers high efficacy and stable output in conjunction with the ultra-clear PMMA optic. Various high-quality European-branded remote drivers are available in either dimming or non-dimming options, making the fitting suitable for integration into a wide variety of applications without compromising the architectural intent.

The body incorporates a thermally optimised die-cast aluminium heatsink for efficient heat dissipation. UGR is between 8–12, dependent on beam angle selection of 18°/24°/36°/50°, with a 3-step MacAdam ellipse ensuring tight colour consistency.

Available in 3000K and 4000K as standard (other CCTs available on request), with CRI 80 as standard and optional CRI 90 or CRI 97. Rated lifetime is 60,000 hours (L80 B10).



6W : 2700K-5000K : 440 lumen - 553 lumen : CRI80/90/97 : 355° rotation & 90° tilt

52mm dia. x 95mm deep and requires a cut-out of 45mm dia.






Part Number Example CL01-0043/6W/4000K/36D/IP20/DD/WHT/BI/DE



PREFIX WATTAGE CCT BEAM ANGLE IP RATING DRIVER BODY COLOUR INSERT COLOUR* EMERGENCY
CL01-0043 6W 2700K 18° IP20 DALI DD White WHT (RAL9016) Black BI (RAL9005) STANDARD ST
    3000K 24°   ON/OFF ST BLACK BLK (RAL9005)   DALI REPORTING DE
    3500K 36°   CASAMBI CA
    4000K 50°   TUNABLE TU
    5000K

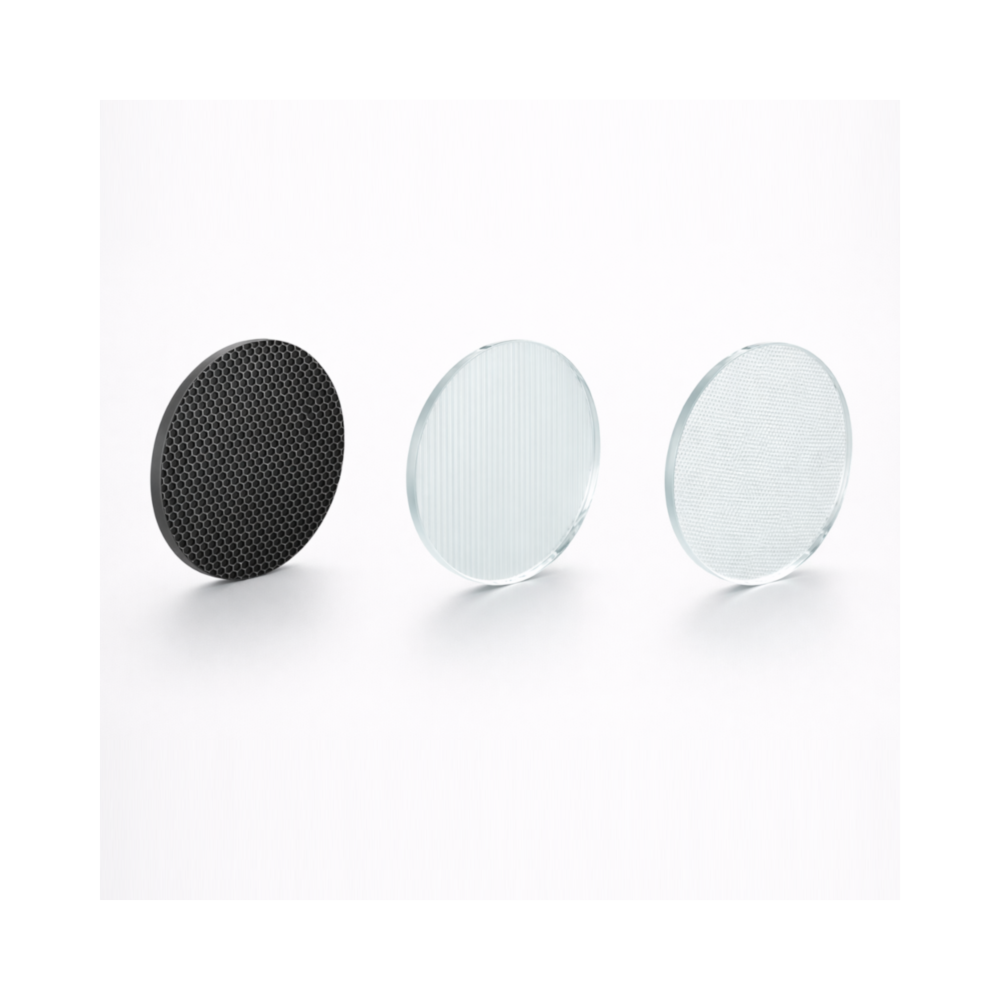

Other options: ..C3/ Plaster-in, ..L1/ Honeycomb Lens, ..L2/ Spreader Lens, ..L3/ Solite Lens



Micro Glide 2 - Lumen outputs of beam angles for 3000K and 4000K at CRI80

PART CODE CCT BEAM ANGLE LUMENS
CL01-0043/6W/3000K/18D/****/**/***/**/** 3000K 18° 440
CL01-0043/6W/4000K/18D/****/**/***/**/** 4000K 18° 485
CL01-0043/6W/3000K/24D/****/**/***/**/** 3000K 24° 469
CL01-0043/6W/4000K/24D/****/**/***/**/** 4000K 24° 516
CL01-0043/6W/3000K/36D/****/**/***/**/** 3000K 36° 501
CL01-0043/6W/4000K/36D/****/**/***/**/** 4000K 36° 552
CL01-0043/6W/3000K/50D/****/**/***/**/** 3000K 50° 493
CL01-0043/6W/4000K/50D/****/**/***/**/** 4000K 50° 543



Distribution Direct



Colour Temp.  2700K / 3000K / 3500K / 4000K / 5000K /
Optic/Diffuser Clear PMMA
Output Varies due to beam angle, CRI and insert colour
Finish Standard RAL colours. Other colours to special order
Efficacy Up to 52 lm/W
CRI 80 (standard), 90 and 97
MacAdam Ellipse <3SDCM
Controls Fixed output, Dali, Casambi and Tunable
Installation Recessed
Dimensions Ø52mm x 95mm deep
Connection Male/Female connection cable
Material Cast Aluminium alloy
Ingress Protection IP20
Impact Rating IK06
Operating Voltage 220-240V 50/60Hz
Emergency Options Standard or Dali reporting
Lifetime 60,000 hours / L80 B10
Warranty 5 years
UGR Varies between 8 - 12
