Offered in 4 body sizes with a choice of either a facetted reflector, producing a 60° beam angle, or an opal panel diffuser producing a 90° beam angle. The range provides minimal visual intrusion while still accommodating higher output requirements. The Aethera is a fixed beam durable product and is suitable for multiple applications and available in IP20 and IP44 versions.

A selection of paint finishes allows the luminaire to blend effortlessly with a wide range of architectural schemes. High-efficiency chip-on-board (COB), for the 60° version and SMD PCB mounted LED's in the 90° version, ensures consistent performance and strong lumen output, supported by a choice of premium European-manufactured remote drivers, available in dimmable and non-dimmable formats.

Designed for versatility, the fitting integrates seamlessly into diverse applications without detracting from the overall design intent. The housing incorporates a thermally optimised die-cast aluminium heatsink to promote effective heat management and is supplied with a pre-fitted two-core connection lead for ease of installation.

For office environments the COB version is compliant to <19 UGR. Colour consistency is tightly controlled within a 3-step MacAdam ellipse. Standard colour temperatures include 3000K and 4000K, with alternative options available on request. CRI 80 is standard, with CRI 90 and CRI 97 available as upgrades. The product is rated for a 60,000-hour lifespan (L80 B10).



20W : 3000K-4000K : 1876 lumen - 2322 lumen : CRI80/90/97

190mm dia. x 86mm deep and requires a cut-out of 165mm dia.






Part Number Example CL01-0052/20W/4000K/90D/IP20/DD/BRS/SMD/ST



PREFIX WATTAGE CCT BEAM ANGLE IP RATING DRIVER BODY COLOUR COB or SMD EMERGENCY

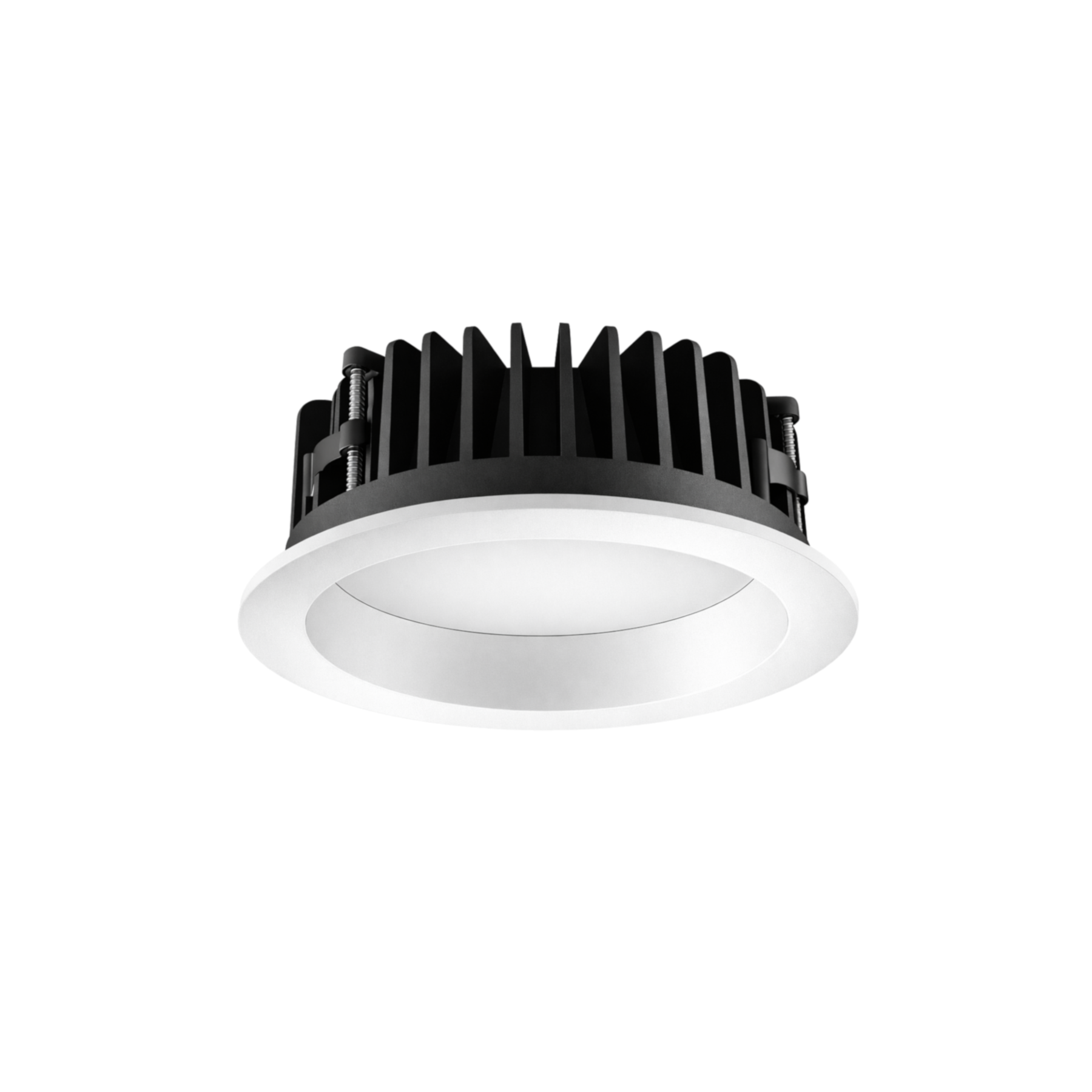

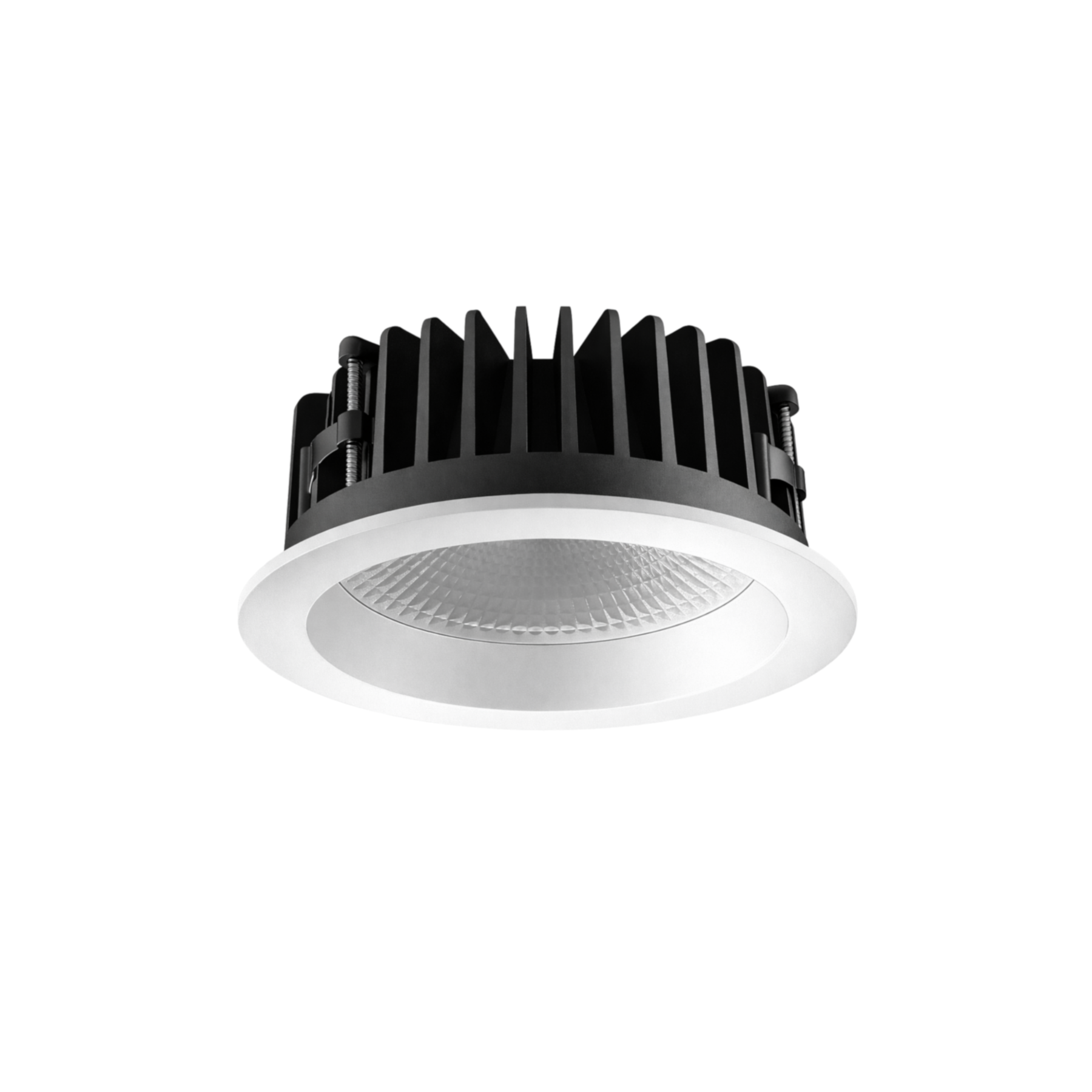

CL01-0052 20W 3000K 60° IP20 DALI DD White WHT (RAL9016) COB 60° COB STANDARD ST

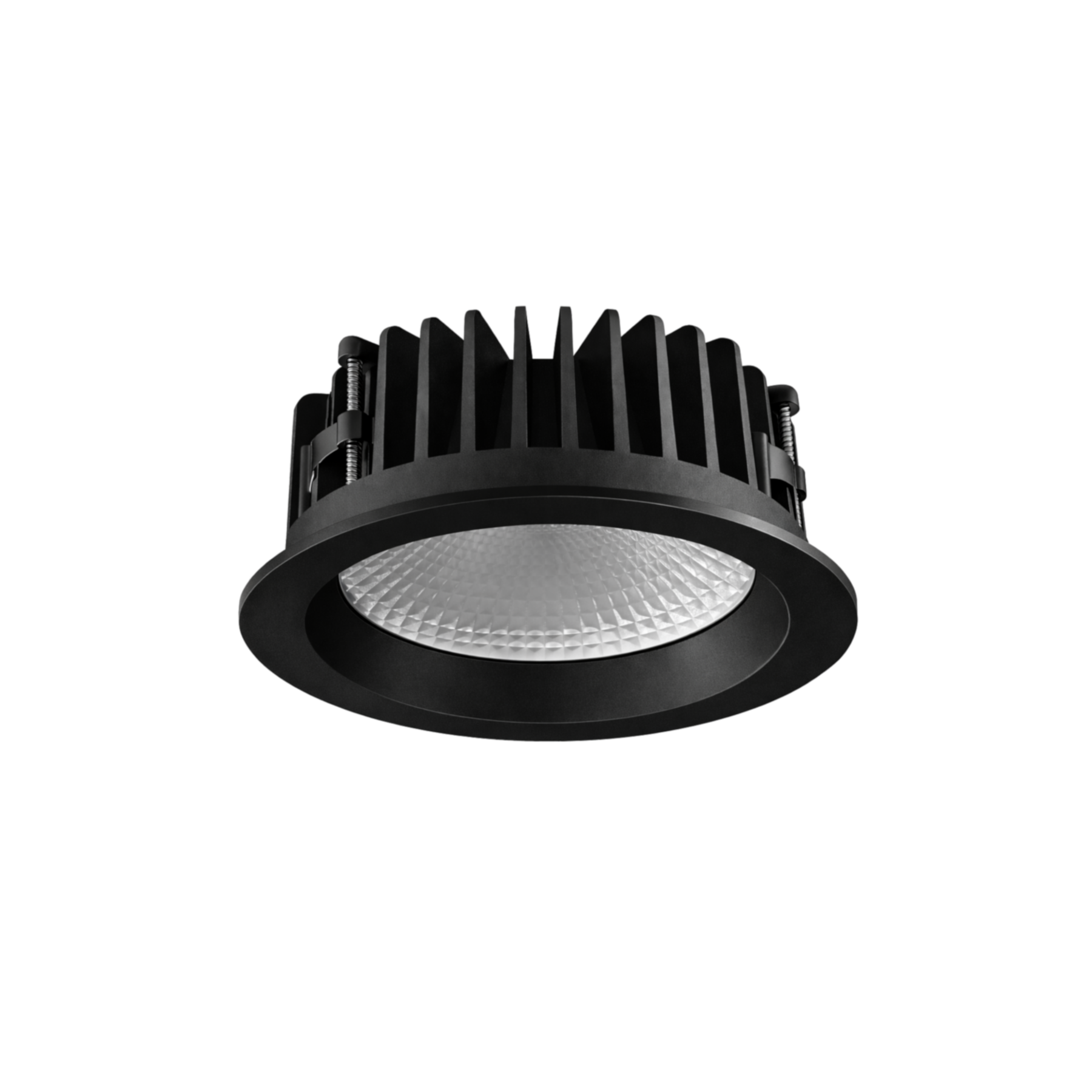

    4000K 90° IP44 ON/OFF ST BLACK BLK (RAL9005) SMD 90° SMD DALI REPORTING DE

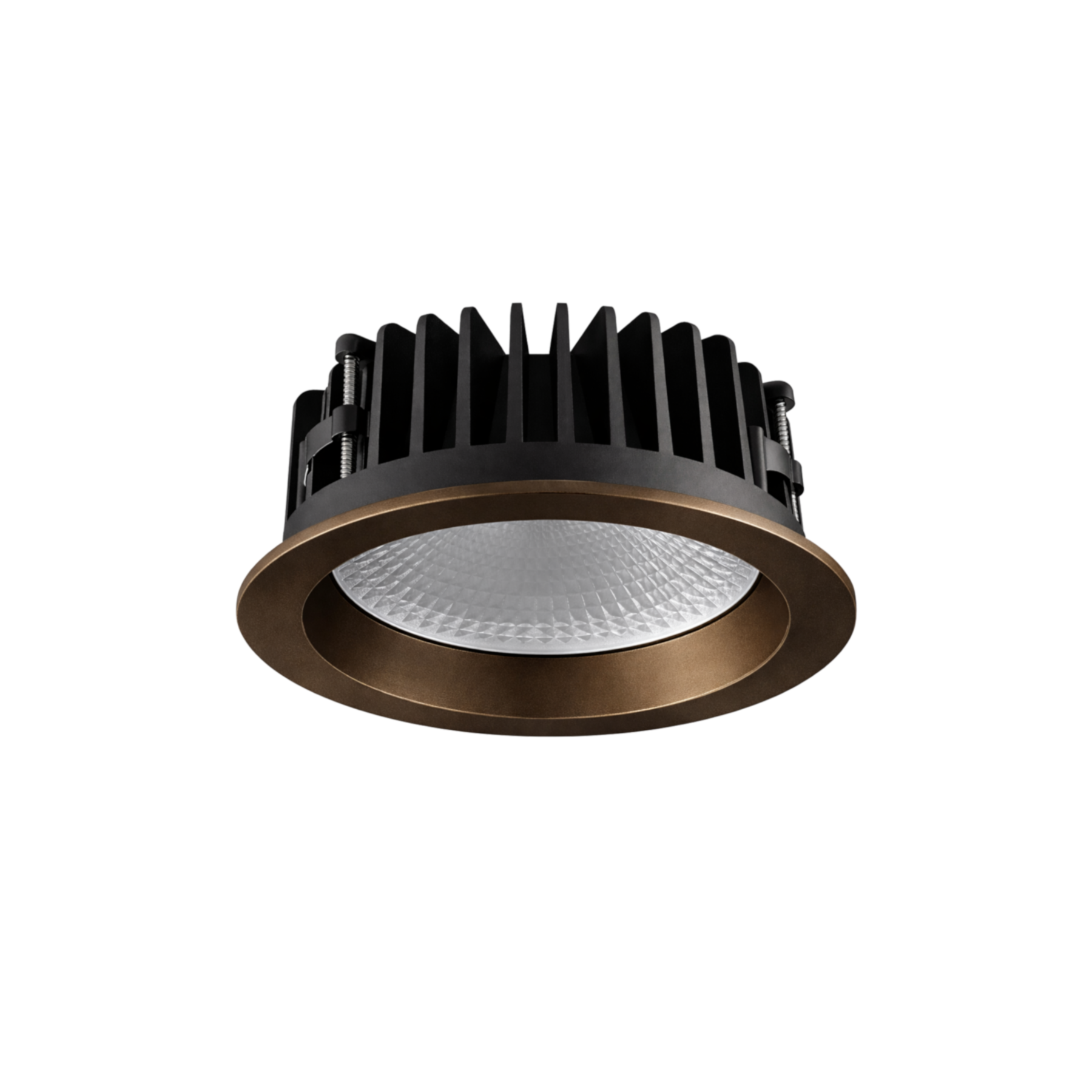

          CASAMBI CA  Bronze BRZ (RAL8019)

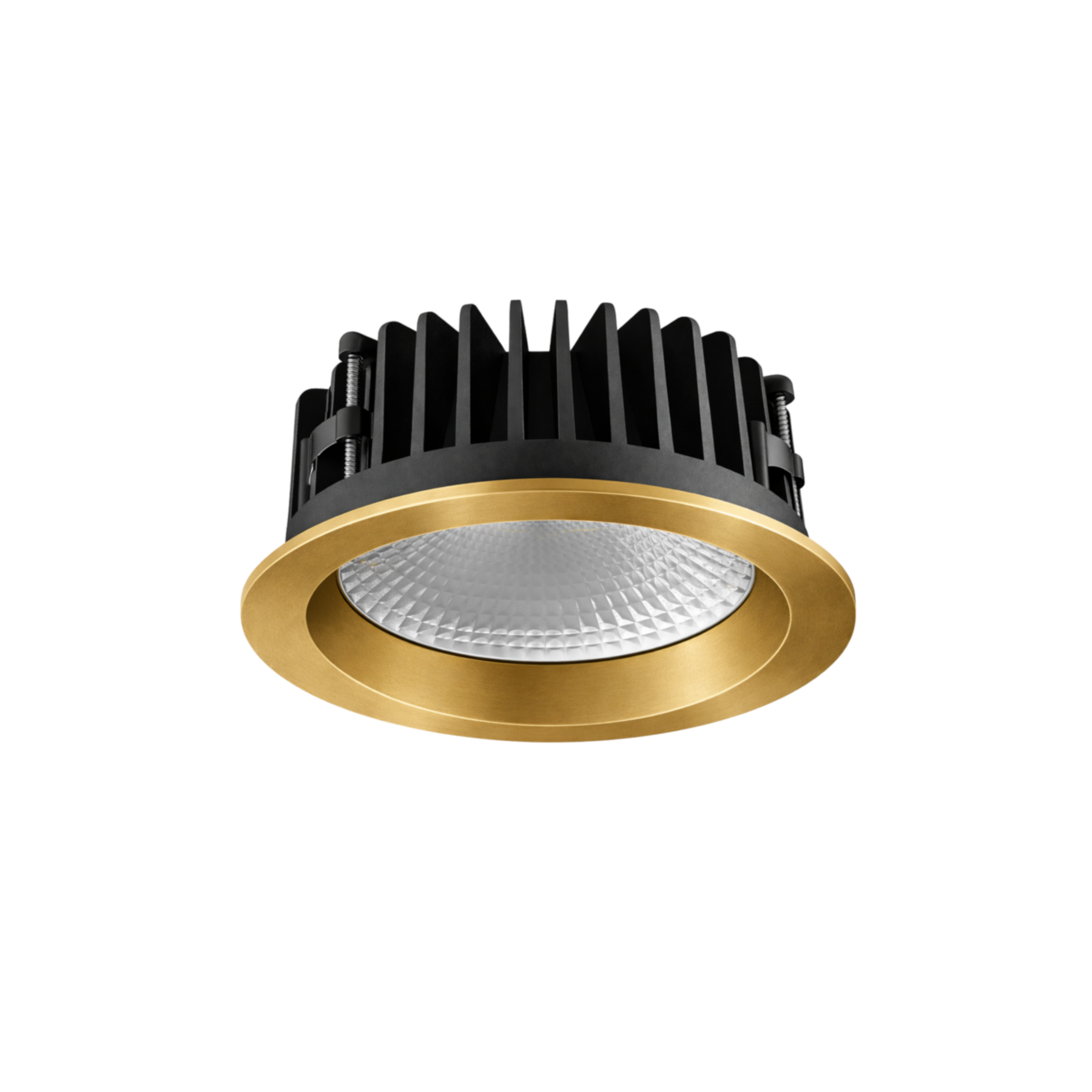

          TUNABLE- COB Only TU Brass BRS (RAL1035)

*Trim colours are for reference only. Colours may appear different to those shown in the product images.



Aethera 190 - Lumen outputs of beam angles for 3000K and 4000K at CRI80

PART CODE CCT BEAM ANGLE LUMENS
CL01-0052/20W/3000K/60D/****/**/***/***/** 3000K 60° 1876
CL01-0052/20W/4000K/60D/****/**/***/***/** 4000K 60° 1920
CL01-0052/20W/3000K/90D/****/**/***/***/** 3000K 90° 2245
CL01-0052/20W/4000K/90D/****/**/***/***/** 4000K 90° 2322



Distribution Direct
Colour Temp.  3000K /  4000K
Optic/Diffuser Opal
Output Varies due to beam angle or CRI
Finish Standard RAL colours. Other colours to special order
Efficacy Up to 100 lm/W
CRI 80 (standard), 90 and 97
MacAdam Ellipse <3SDCM
Controls Fixed output, Dali, Casambi and Tunable
Installation Recessed
Dimensions Ø190mm x 86mm deep
Connection Male/Female connection cable
Material Cast Aluminium alloy
Ingress Protection IP20 or IP44
Impact Rating IK06
Operating Voltage 220-240V 50/60Hz
Emergency Options Standard or Dali reporting
Lifetime 60,000 hours / L80 B10
Warranty 5 years
UGR <19 COB
